Specifications

Type

• Industrial hand ratchet puller/hoist

Capacity

• 2 ton unit: 2 ton (4,000 lbs.) double line / 1 ton (2,000 lbs.) single line
• 3 ton unit: 3 ton (6,000 lbs.) double line / 1½ ton (3,000 lbs.) single line
• Ratings are based on "dead lift" (lifting an object straight up, not dragging or pulling) The commonly used drag/pull rating ratio is 2:1 (double the dead lift rating)

Cable Pullers

• Cable Lengths: 2 ton unit - 20´, 30´ and 35´ / 3 ton unit - 20´
• Size: 5/16" 6x37 (222 strand)
• Extra heavy duty flexible fiber core wire rope

Synthetic Rope Pullers

• Rope Lengths: 2 ton unit - 20´ / 3 ton unit - 35´
• Size: 5/16"
• Brand name: AmSteel-Blue. Manufactured by Samson^®.

Manufactured of

• Ductile iron
• Steel

Hooks

• Comes complete with 3 hooks (frame hook, end hook and tackle block hook)

Weight and Size

• Cable Models: 2 ton units - 25.0 lbs., 25.2 lbs. or 26.0 lbs. / 3 ton unit - 25.8 lbs.
• Rope Models: 2 ton unit - 22.6 lbs. / 3 ton unit - 24 lbs.
• 17" length x 6½" width x 8" height
• Box size: 19" length x 7" width x 9" height

Warranty

• All models of The More Power Puller® include a two year limited warranty

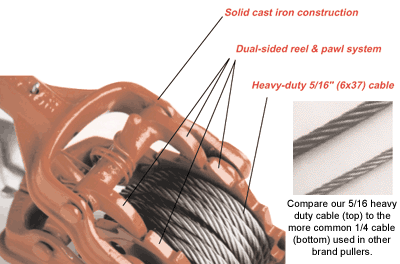

Safety

• Safety handle will bend when the rated capacity of puller is exceeded.
• Dual-sided reel and pawl system
• 5/16" Cable (rope) size
• Solid one-piece ductile iron components
• Trouble free one notch at a time let down - up to 4 notches on a light load
• Tried and true, tested design since 1934

Solid Cast Components Include:

Frame

• Ductile iron ¤ Ribbed for added strength

Reel (Drum for cable)

• Welded steel * Double sided teeth for safety
  *Note: Every puller now has a welded steel reel effective with the below dates. A few suppliers may still have pullers with a malleable iron reel in stock.
  01/11/13 3-35-A-SLT
  02/01/13 3-20
  02/13/13 2-20-A-SLT
  04/11/13 3-20-SLT
  01/10/14 2-20
  02/26/14 2-35-SLT
  03/07/14 2-30
  03/29/14 2-20-SLT
  04/02/14 2-30-SLT
  07/22/14 2-35

Pawls (Dogs)

• Ductile iron ¤ Double sided for safety
• Spring loaded interlocking pawl system

Yoke

• Ductile iron ¤ Ribbed for added strength

Hooks

• Frame hook & end hook are forged steel
• Tackle block hook is a steel investment casting
